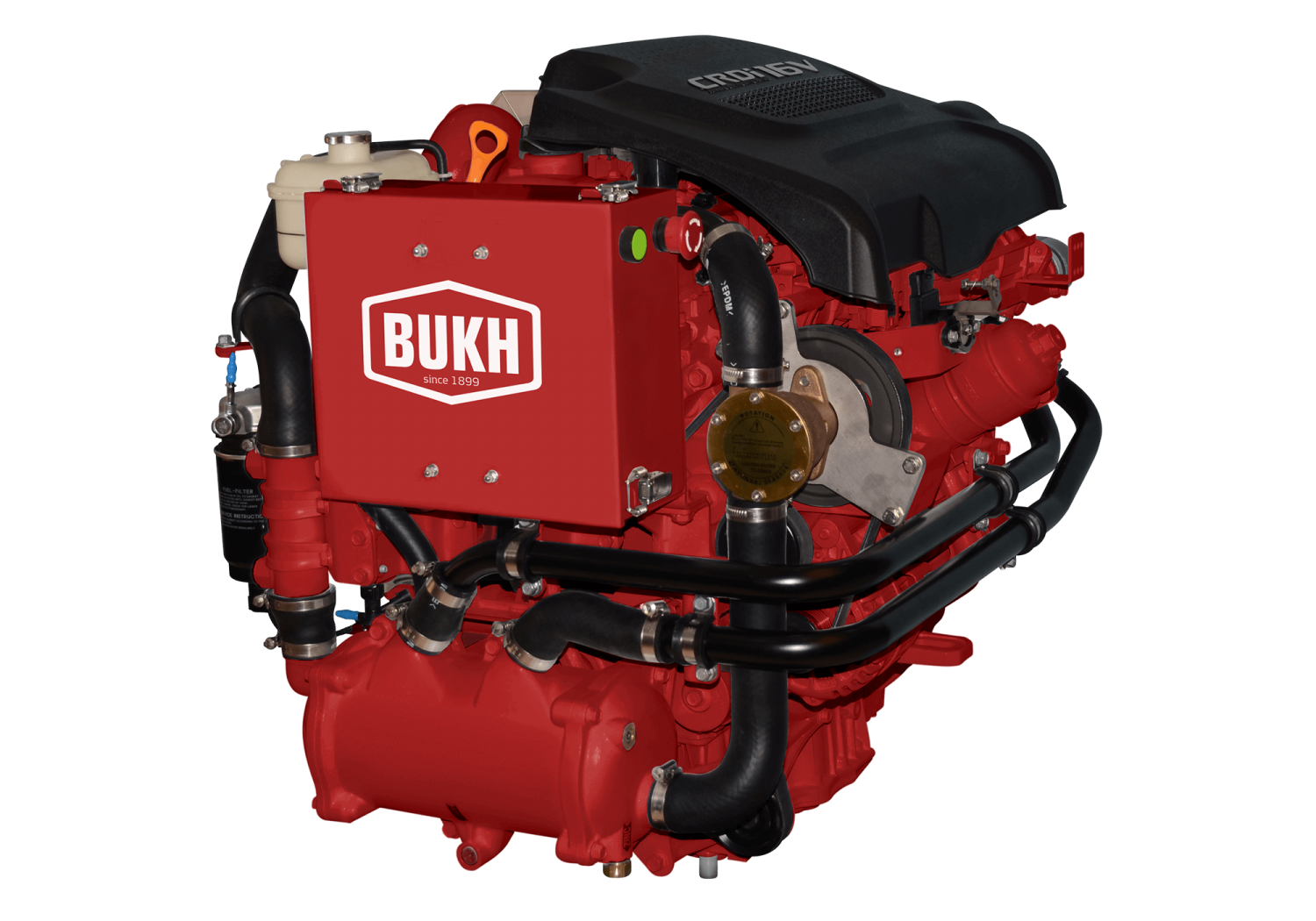

BUKH R210
210HP (154KW)
The BUKH R-Series Solenoid Common Rail Direct injection System(CRDi) delivers 210 hp and 44kg·m of torque from the 2.2 liter In-line 4 CRDI engine.
The common rail multiple injection features make the In-line 4 R-series more environmentally friendly by minimizing the emissions of particulates and NOX. The designs optimize fuel injection and intake porting to
improve combustion performance, particularly low temperature combustion stability through lean air-fuel rationing. This ensures that we satisfy the world´s strictest exhaust emission standards.
SPECIFICATIONS
| Engine rotation (looking forward) |
Anti-clockwise |
| Propeller rotation (looking forward) |
Anti-clockwise |
| Number of cylinders |
4 |
| Bore and stroke |
85,4/96 |
| Net weight |
280 |
| Compression ratio |
17.5:1 |
| Engine type |
R210J |
| Engine crankcase vent syst |
Closed |
| Engine duty rating |
C06 Special Light Duty Commercial_1 |
| Output [ps(kW)] acc. to ISO 8665 |
210 (154) |
| rom@full load |
3800 |
| Displacement [cc] |
2200 |
| Max. torque [kgm] |
38 |
| At speed [rpm] |
3800 |
| Injection system |
Common Rall Direct Injection (Piezo injector) |
| Alternator [A] |
150 |
| Electronic engine diagnostic |
YES |
| Max. Fuel consumption [L/h] |
43 |
| Propulsion system |
Shaftdrive / Waterjet |
| Cylinders |
In-line 4 |
